General |

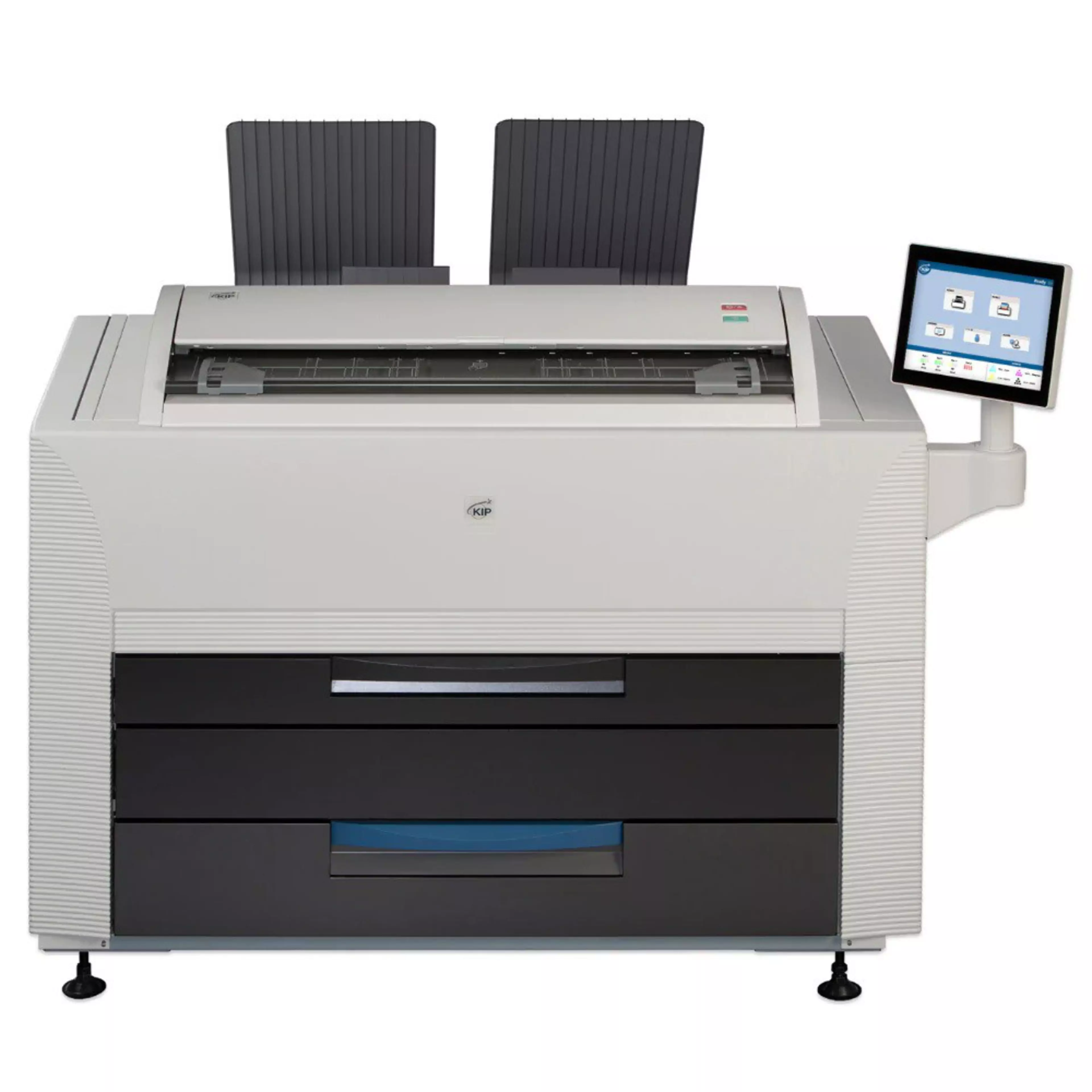

2/4 Roll Colour and Black & White Printer |
Colour and black & white printer with intelligent
KIP System K touchscreen
|
2/4 Roll Colour and Black & White Print/Copy/Scan |
Colour and black & white printer with intelligent Print/Copy/Scan KIP System K touchscreen for Print/Copy and Scan functions |
System Scanners |
KIP 860: KIP 720 embedded |
Stacking Systems (standard) |
Front Stacking Print Tray |
Description |
High production colour and black & white wide format print/copy/scan |
Type |
LED Array Electro photography with organic photoconductor (OPC drum) Contact Development using non magnetic mono-component toner |
Configurations |
Printer or multi-function system (print/copy/scan) |
Speed |
Up to 268 sqm per hour in either black & white or colour regardless of image type or print resolution |
Warm Up Time |
Instant from standby, less than 6 minutes from power on |
Toner |
Four colour (CMYK), dry toner, print images are UV resistant and waterproof |
Input Power |
EU/UK: 220 – 240 V, 50/60 Hz, 20 A |
Power Consumption |
Ready: 0.6 kWh. Printing: 1.9 kWh, Warm Up: 3.4 kWh, Sleep Mode: 3 Wh |
Acoustic Noise |
< 65 db Printing |
Ozone |
< 0.05 ppm (average of 8 hours) |
Dimensions (W x D x H) |
KIP 860: 1500 x 1080 x 1155 mm |
Weight |
KIP 860: 510 kg |
Printer |
Print resolution |
600 x 2,400 dpi |
Paper capacity |
280 sqm ( 2 rolls + cut sheet )
560 sqm ( 4 rolls + cut sheet ) |
Output sizes width (roll media) |
297 mm – 914 mm |
Output sizes length (roll media) |
210 mm minimum, 64 m maximum (actual length may be dependent on media type and file type limitations) |
Paper weight (roll media) |
Bond: 67 – 150 gsm, Film: 3 – 4 mil Double Matte Polyester, Tracing: 67 – 75 gsm
Banner and Gloss: see KIP 800 Media Guide |
Sheet Bypass |
Up to 150 gsm bond / Maximum sheet size
914 mm x manageable length / Minimum sheet size A3 |
Media types |
Bond Paper: Economical Bond, Standard Bond. Specialty
Bond paper: Presentation Bond, Heavy Weight Bond.
Polyester Film: 3 mil Clear, 3 mil Double Matte, 4 mil
White Opaque. Banner Media: Fusion Soft Polyester.
Please see the KIP 800 Series Media Guide for details. |
Scanner / Copier |
Resolution |
600 dpi (optical) |
Original |
Single Sheet, image viewable / face up |
Widths |
210 mm – 914 mm (international standard page sizes to include ANSI, ARCH, ISO A & B, CHN, JPN) |
Length |
210 mm – 6 m |
|
Please see the KIP 2300 Scanner documentation for details on this optional scanner for the KIP 890 Colour System |
Controller |
Controller Type |
System K Embedded, Windows Standard Embedded
7 – 64 bit, i5 Quad Cord (min) |
Memory |
4 GB (min) |
Compatible File Formats |
Raster Colour: TIFF, JPG, JPG2000, PNG, BMP, GIF, TGA, RLE/RLC
Vector Colour/B&W: HPGL, HPGL/2, HP-RTL, Postscript (PS/EPS), Adobe PDF, Autodesk DWF, Multipage PDF & DWF
Raster B&W: TIFF Group 3 & 4, CALS Group 4, Grayscale TIFF
Vector B&W: Calcomp 906/907 |
Space, Electrical & Environmental Requirements |
Total Space (minimum) |
3350 x 2600 mm (W x D)
3350 x 5190 mm (W x D) (with optional rear print stacker) |
Electrical Requirements |
EU/UK: 220-240 V, 50/60 Hz, 16 A |
Electrical Receptacle |
Europe = CEE 7
UK = BS 546
All other regions = please refer to your local standards |
Network Port |
RJ-45 port-CAT5 or higher. LAN rated at least at 100 MB.
Recommended is 1000 MB |
Room Temperature |
10 – 30°C |
Humidity |
15 – 80% RH |
Site Survey |
KIP 800 Colour Series site survey documentation is to be completed prior to system installation |
